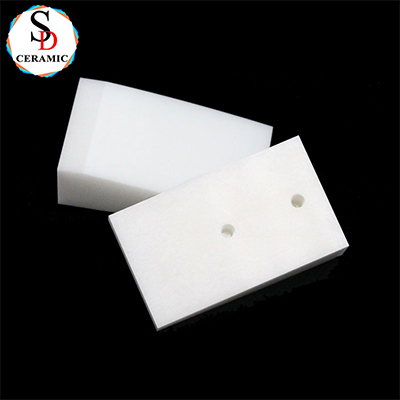

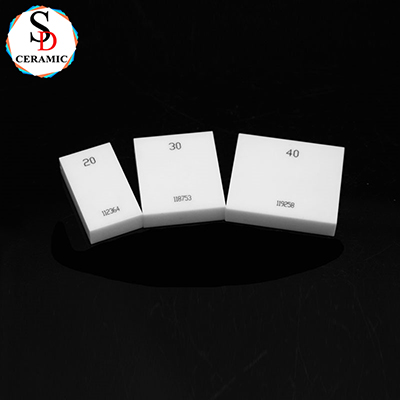

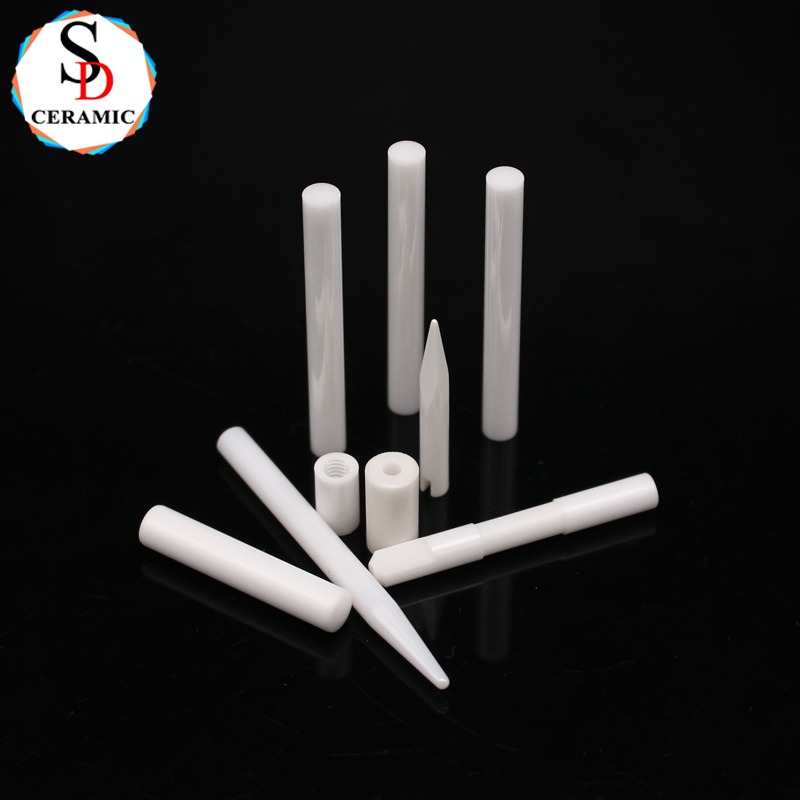

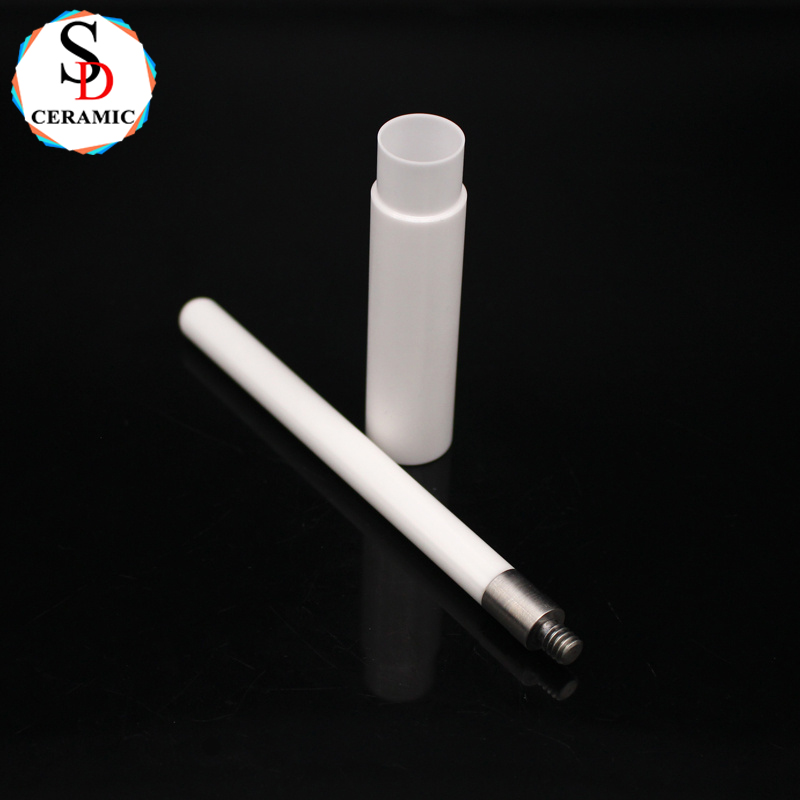

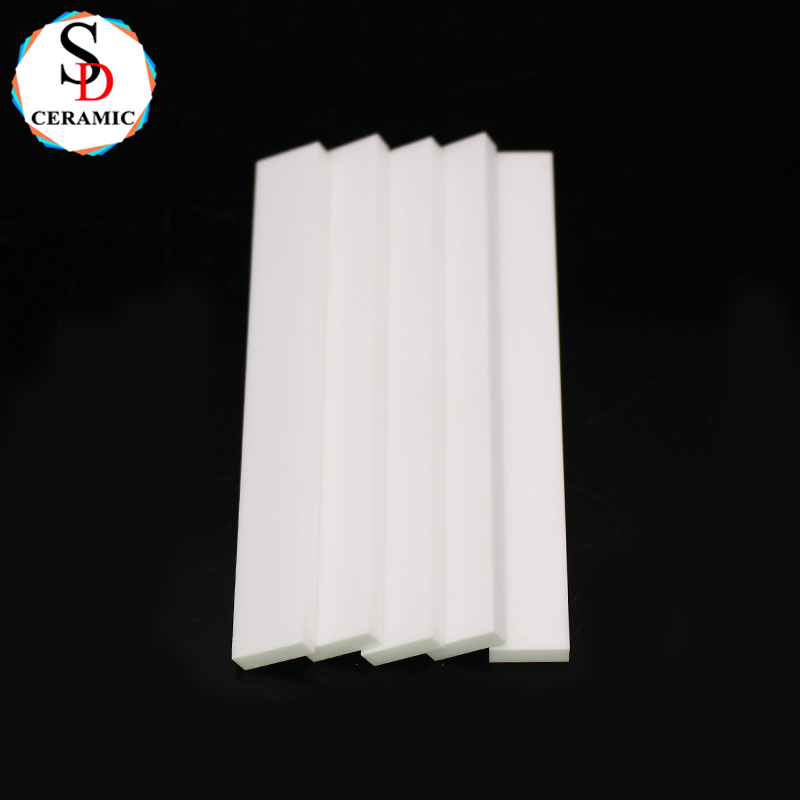

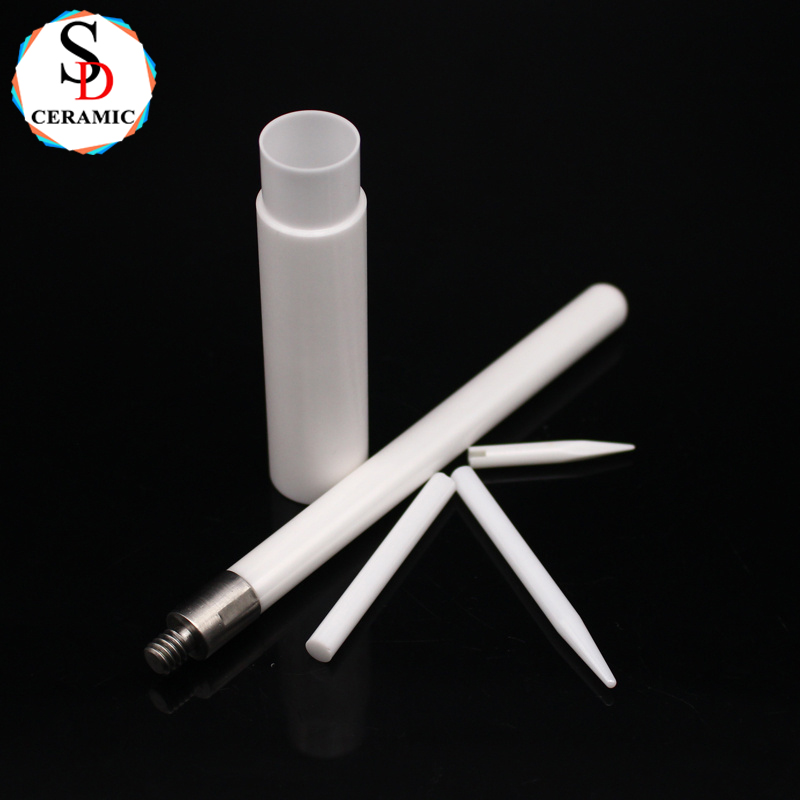

High Hardness Ceramic Plate Zirconia Ceramic Parts Porcelain Rods

Zirconia ceramic components are advanced engineering parts made from zirconium dioxide (ZrO₂). These materials are known for their exceptional properties, such as high strength, toughness, and hardness.High Hardness Ceramic Plate Zirconia Ceramic Parts Porcelain Rods They also exhibit excellent thermal and chemical stability, making them suitable for applications in extreme environments.

Inquire Now

Product Introduction

High Hardness Ceramic Plate Zirconia Ceramic Parts Porcelain Rods

Zirconia ceramic components are advanced engineering parts made from zirconium dioxide (ZrO₂). These materials are known for their exceptional properties, such as high strength, toughness, and hardness. They also exhibit excellent thermal and chemical stability, making them suitable for applications in extreme environments. Common uses include wear-resistant parts, cutting tools, and components in aerospace and automotive industries. Their biocompatibility also makes them ideal for medical implants. Overall, zirconia ceramic components are valued for their durability and reliability in various high-performance applications.

High Hardness Ceramic Plate Zirconia Ceramic Parts Porcelain Rods

Performance:

1. The strong acid and alkali resistance of zirconia ceramic shall be better than other materials.

2. Zirconia ceramics are not easy to wear, with strong durability. The hardness is close to the natural diamond and light than metals, also has the gem properties such as never wear and non - discoloring.

3. Can maintain the mechanical strength under high temperature, can be used in the condition with high temperature.

4. Good surface finish quality, could get more glossy smooth surface. Small coefficient of wear, with quite good self - lubricating function, non - magnetic, electric insulation, static - free, anti interference and radiation.

Technical Parameters

Properties	Units	Cordierite Ceramic	Mullite Ceramic	95%Alumina Ceramic	99%Alumina Ceramic	99.5%Alumina Ceramic	99.7%Alumina Ceramic	Silicon Nitride	Zirconia Ceramic
Colour		Yellow	White	White	Light yellow	Light yellow	Light yellow	Black	White
Density	g/cm3	1.9	2.6	3.6	3.8	3.8	3.9	3.2	6
Flexural Strength	Mpa	30	120	300	350	375	375	800	1100
Compressive Strength	MPa	350	500	2500	2800	2800	2554	2600	3000
Modulus of Elasicity(20℃）	Gpa	40	100	300	350	350	357	290	320
Max Use Temperature	°C	1200	1300	1400	1500	1500	1760	1300	1050
Thermal Condutivity	W(m.K)	1.3-1.8	2~6	20	30	30	33-38	25	3
Thermal Expansion Cofficient	10-6/°C	2.5-3	2.5-3	7.5	8	8.2	8.2	3	10
Thermal Shock Resistance	△T℃	300	150	140	150	200	223	600	250
Dielectric Strength	KV/mm	-	-	15	18	18	23.4	14	15
Dielectric Constant	Er	8	8	9	9.2	9.2	9.84	9	26

Production process

1. Grind and crush the raw materials to be slurry or powder

2. se-different method to making the slurry or powder into semi-finished products

3. Put the semi-finished products into the kiln for dewaxing and sintering;

4. After forming and sintering, Ceramic Sleeves products can also be processed by subsequent CNC precision machining according to the drawing requirements. Then Q/C test.

5. Finally package Ceramic Sleeves by bubble paper or cartons and place it on tray for delivery

95 alumina substrate

Certifications

95 alumina substrate

Our customers

Packaging and shipping

95 alumina substrate

Transport

Alumina AL2O3 Substrate Insulating Ceramic Substrate Thermally Conductive Ceramic Sheet

FAQ：

Q: Do you have the products in stock?

A: Some standard produce have in stock, such as ceramic band heater insulator; bobbin heater insulator and ceramic connector. But it needs to check according to your requirement.

Q: How do you pack the goods?

A: Our standard packaging is carton, we can customize it as per your requirement as well.

Q: How many days do you finish the sample?

A: Usually 15 business days (Including 8days for making furnaces and 7days for producing samples)
