Advanced Ceramic Pipe Yttria Stabilized Zirconia Ceramic Tube

Shengda Ceramic can provide all kinds of Advanced Ceramic Pipe Yttria Stabilized Zirconia Ceramic Tube exhibit high strength, toughness, and excellent resistance to wear and corrosion, making them ideal for use in extreme environments.

Inquire Now

Product Introduction

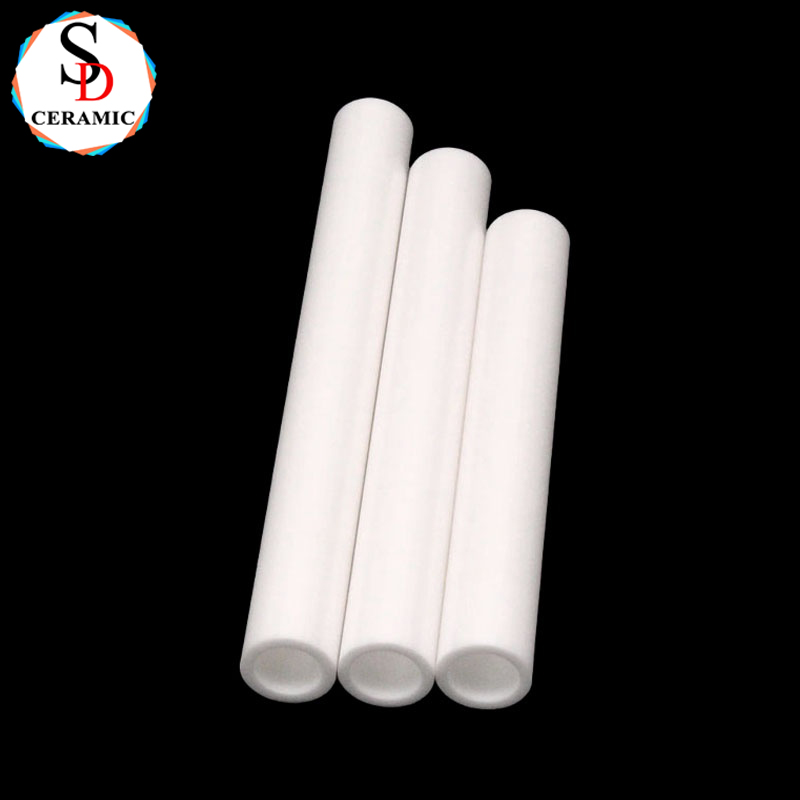

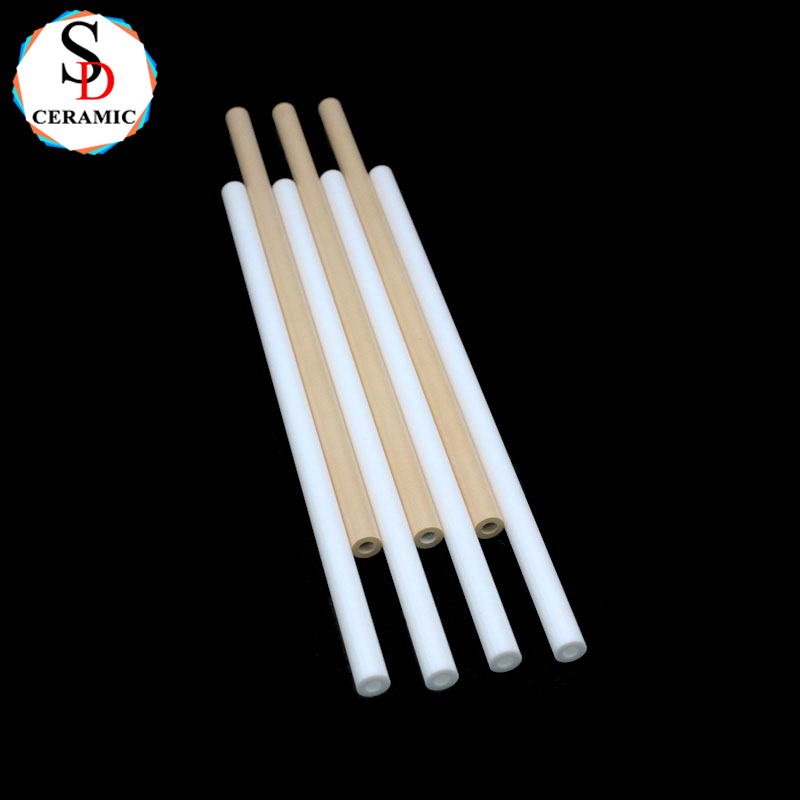

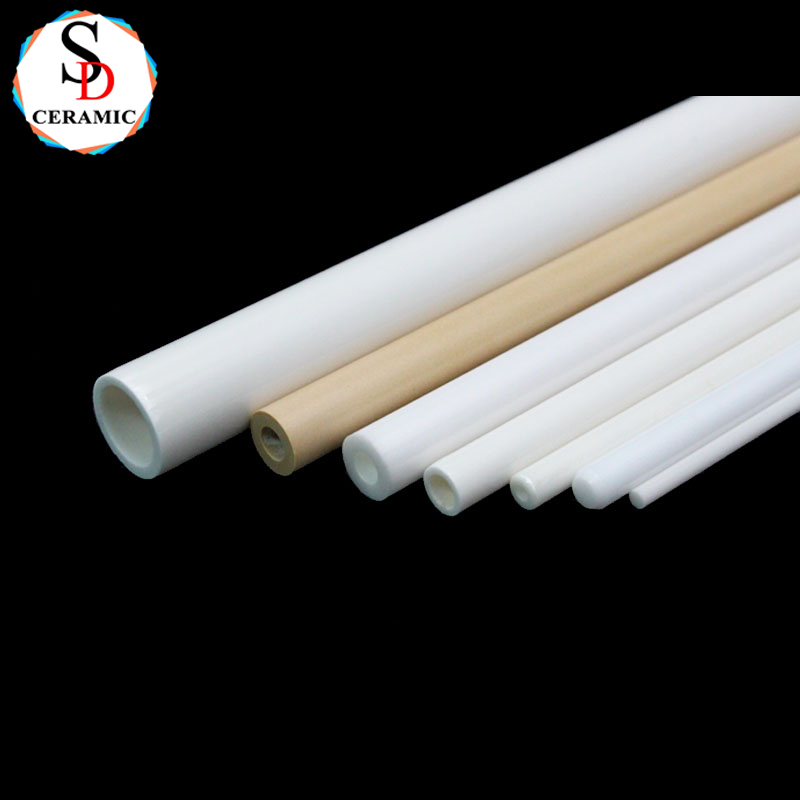

Advanced Ceramic Pipe Yttria Stabilized Zirconia Ceramic Tube

Zirconia ceramic tubes, made from zirconium dioxide (ZrO₂), are advanced ceramic components known for their exceptional thermal, mechanical, and chemical properties. These tubes exhibit high strength, toughness, and excellent resistance to wear and corrosion, making them ideal for use in extreme environments. They have low thermal conductivity and high thermal stability, allowing them to withstand high temperatures and thermal shocks, which is particularly useful in applications such as furnace linings, thermocouple protection, and high-temperature sensors.

Additionally, zirconia ceramic tubes are chemically inert, providing resistance to acids, alkalis, and other corrosive substances. This makes them suitable for use in chemical processing and laboratory equipment. Their biocompatibility also allows for applications in the medical field, such as in dental and surgical instruments. Overall, zirconia ceramic tubes are versatile components widely used in industries requiring durability, thermal insulation, and chemical resistance.

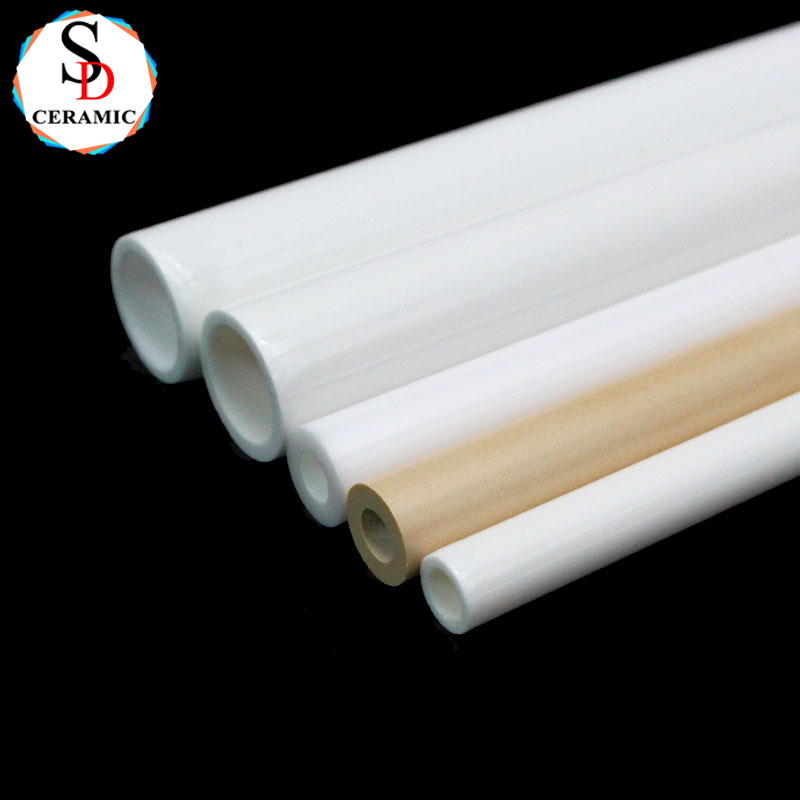

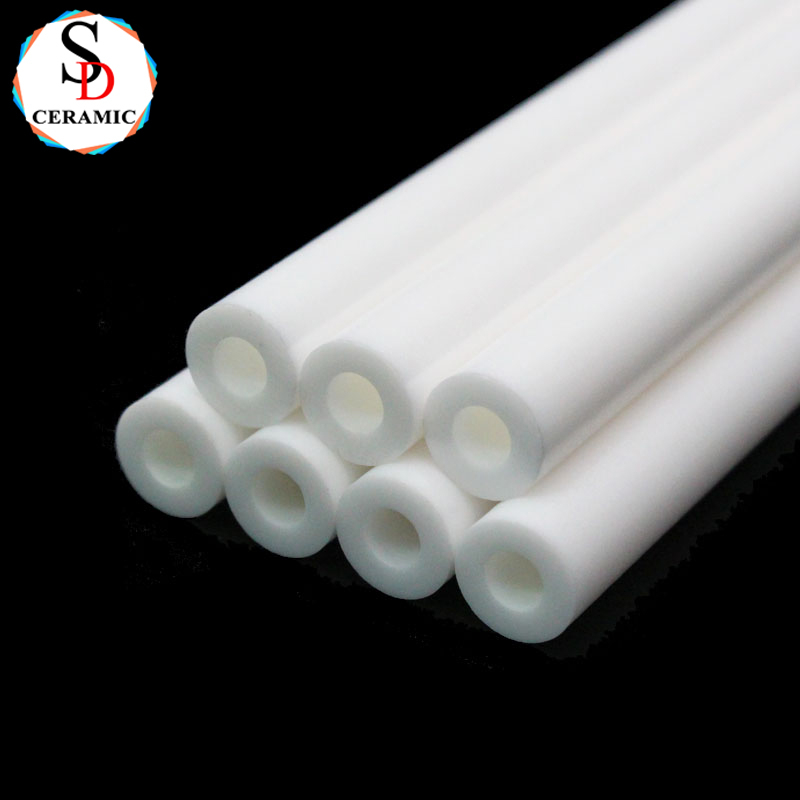

Advanced Ceramic Pipe Yttria Stabilized Zirconia Ceramic Tube

Main Features:

1. High hardness

2. High heat resistance

3. Good wear resistance

4. High electrical resistivity

5. High corrosion resistance

Technical Parameters

Properties	Units	Cordierite Ceramic	Mullite Ceramic	95%Alumina Ceramic	99%Alumina Ceramic	99.5%Alumina Ceramic	99.7%Alumina Ceramic	Silicon Nitride	Zirconia Ceramic
Colour		Yellow	White	White	Light yellow	Light yellow	Light yellow	Black	White
Density	g/cm3	1.9	2.6	3.6	3.8	3.8	3.9	3.2	6
Flexural Strength	Mpa	30	120	300	350	375	375	800	1100
Compressive Strength	MPa	350	500	2500	2800	2800	2554	2600	3000
Modulus of Elasicity(20℃）	Gpa	40	100	300	350	350	357	290	320
Max Use Temperature	°C	1200	1300	1400	1500	1500	1760	1300	1050
Thermal Condutivity	W(m.K)	1.3-1.8	2~6	20	30	30	33-38	25	3
Thermal Expansion Cofficient	10-6/°C	2.5-3	2.5-3	7.5	8	8.2	8.2	3	10
Thermal Shock Resistance	△T℃	300	150	140	150	200	223	600	250
Dielectric Strength	KV/mm	-	-	15	18	18	23.4	14	15
Dielectric Constant	Er	8	8	9	9.2	9.2	9.84	9	26

Production process

1. Grind and crush the raw materials to be slurry or powder

2. se-different method to making the slurry or powder into semi-finished products

3. Put the semi-finished products into the kiln for dewaxing and sintering;

4. After forming and sintering, Ceramic Sleeves products can also be processed by subsequent CNC precision machining according to the drawing requirements. Then Q/C test.

5. Finally package Ceramic Sleeves by bubble paper or cartons and place it on tray for delivery

95 alumina substrate

Certifications

95 alumina substrate

Our customers

Packaging and shipping

95 alumina substrate

Transport

Alumina AL2O3 Substrate Insulating Ceramic Substrate Thermally Conductive Ceramic Sheet

FAQ：

Q: Do you have the products in stock?

A: Some standard produce have in stock, such as ceramic band heater insulator; bobbin heater insulator and ceramic connector. But it needs to check according to your requirement.

Q: How do you pack the goods?

A: Our standard packaging is carton, we can customize it as per your requirement as well.

Q: How many days do you finish the sample?

A: Usually 15 business days (Including 8days for making furnaces and 7days for producing samples)
