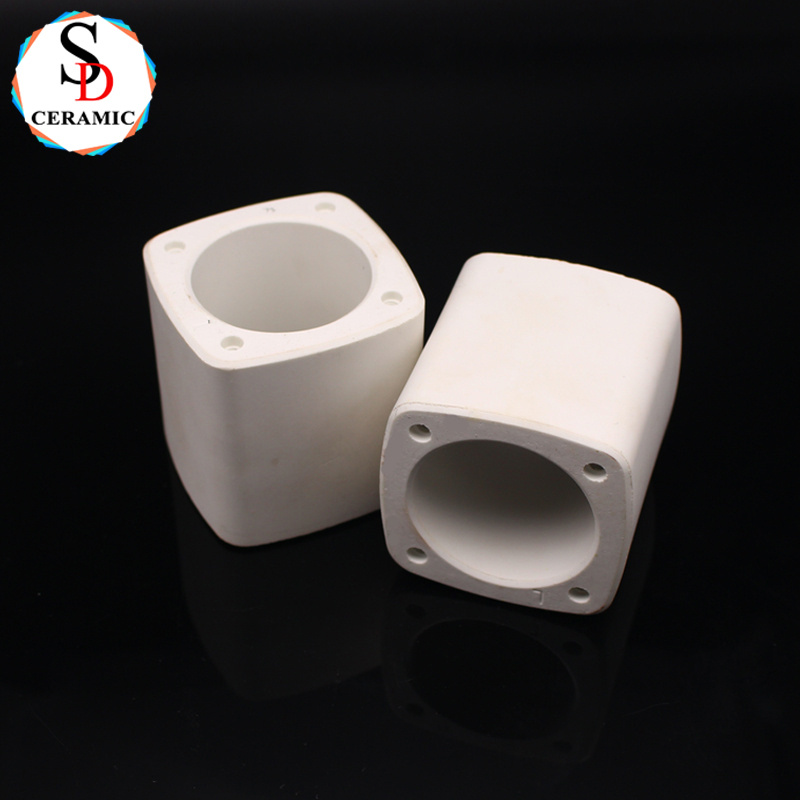

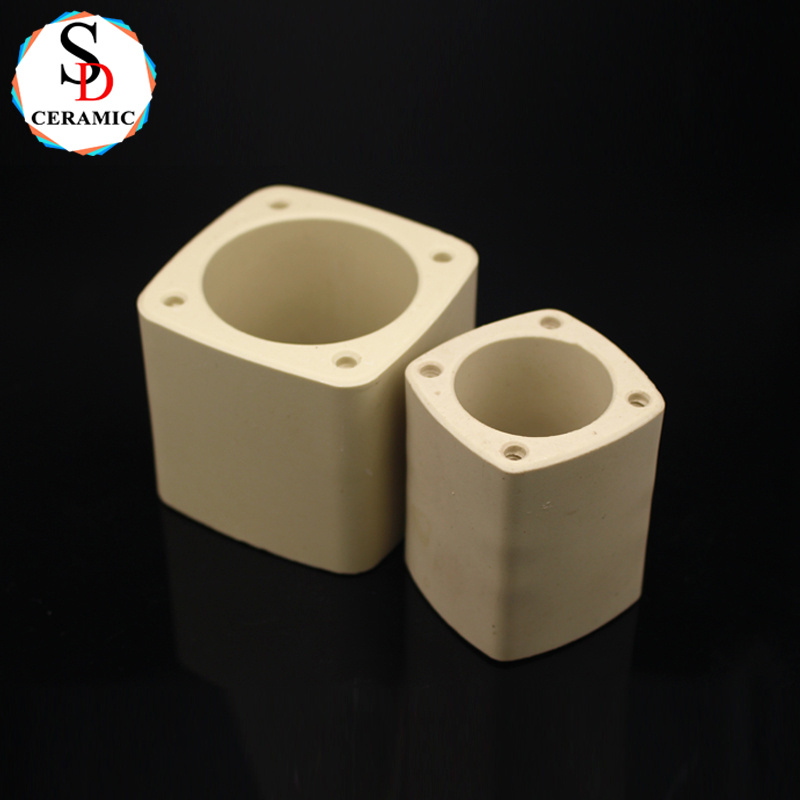

Precision Alumina Machining Solutions for Fusegear Series Ceramic Components

As a certified manufacturer of advanced electrical ceramics, we deliver high-performance fusegear series ceramic insulators through proprietary alumina ceramic machining services. Engineered for 35kV+ systems, our components achieve ≤0.005mm dimensional accuracy while maintaining 99.8% Al₂O₃ purity – the ultimate solution for arc-resistant fuse holders, circuit breaker bushings, and HV switchgear.

Inquire Now

Product Introduction

Precision Alumina Machining Solutions for Fusegear Series Ceramic Components

As a certified manufacturer of advanced electrical ceramics, we deliver high-performance fusegear series ceramic insulators through proprietary alumina ceramic machining services. Engineered for 35kV+ systems, our components achieve ≤0.005mm dimensional accuracy while maintaining 99.8% Al₂O₃ purity – the ultimate solution for arc-resistant fuse holders, circuit breaker bushings, and HV switchgear.

Critical Advantages for Electrical Systems

✅ Arc Erosion Resistance

Withstand 100+ arc interruptions (IEC 62271-200 verified)

✅ Zero Outgassing

Vacuum compatibility <5×10⁻⁸ Torr for GIS applications

✅ Ultra-Precision Machining

±5μm tolerance on complex geometries:

• Threaded fuse cavities

• Multi-tiered insulating barriers

• Laser-drilled venting channels

CERMAIC PRODUCT

Precision Alumina Machining Solutions for Fusegear Series Ceramic Components

Keywords: Fusegear Series Ceramic Insulators, Custom Ceramic Fuse Holders, Alumina Ceramic Fusegear Parts,Fusegear Alumina Insulators,Alumina Ceramic Machining Services

Main Features:

1. High hardness

2. High heat resistance

3. Good wear resistance

4. High electrical resistivity

5. High corrosion resistance

Technical Parameters

Properties	Units	Cordierite Ceramic	Mullite Ceramic	95%Alumina Ceramic	99%Alumina Ceramic	99.5%Alumina Ceramic	99.7%Alumina Ceramic	Silicon Nitride	Zirconia Ceramic
Colour		Yellow	White	White	Light yellow	Light yellow	Light yellow	Black	White
Density	g/cm3	1.9	2.6	3.6	3.8	3.8	3.9	3.2	6
Flexural Strength	Mpa	30	120	300	350	375	375	800	1100
Compressive Strength	MPa	350	500	2500	2800	2800	2554	2600	3000
Modulus of Elasicity(20℃）	Gpa	40	100	300	350	350	357	290	320
Max Use Temperature	°C	1200	1300	1400	1500	1500	1760	1300	1050
Thermal Condutivity	W(m.K)	1.3-1.8	2~6	20	30	30	33-38	25	3
Thermal Expansion Cofficient	10-6/°C	2.5-3	2.5-3	7.5	8	8.2	8.2	3	10
Thermal Shock Resistance	△T℃	300	150	140	150	200	223	600	250
Dielectric Strength	KV/mm	-	-	15	18	18	23.4	14	15
Dielectric Constant	Er	8	8	9	9.2	9.2	9.84	9	26

Production process

1. Grind and crush the raw materials to be slurry or powder

2. se-different method to making the slurry or powder into semi-finished products

3. Put the semi-finished products into the kiln for dewaxing and sintering;

4. After forming and sintering, Ceramic Sleeves products can also be processed by subsequent CNC precision machining according to the drawing requirements. Then Q/C test.

5. Finally package Ceramic Sleeves by bubble paper or cartons and place it on tray for delivery

95 alumina substrate

Certifications

95 alumina substrate

Our customers

Packaging and shipping

95 alumina substrate

Transport

Alumina AL2O3 Substrate Insulating Ceramic Substrate Thermally Conductive Ceramic Sheet

FAQ：

Q: Do you have the products in stock?

A: Some standard produce have in stock, such as ceramic band heater insulator; bobbin heater insulator and ceramic connector. But it needs to check according to your requirement.

Q: How do you pack the goods?

A: Our standard packaging is carton, we can customize it as per your requirement as well.

Q: How many days do you finish the sample?

A: Usually 15 business days (Including 8days for making furnaces and 7days for producing samples)
