High Insulating Performance Steatite Ceramic Strip Ceramic Terminal Block

High Insulating Performance Steatite Ceramic Strip Ceramic Terminal Block

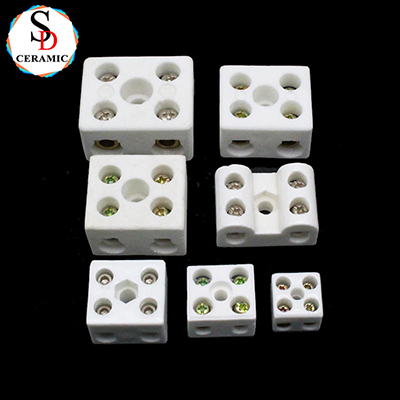

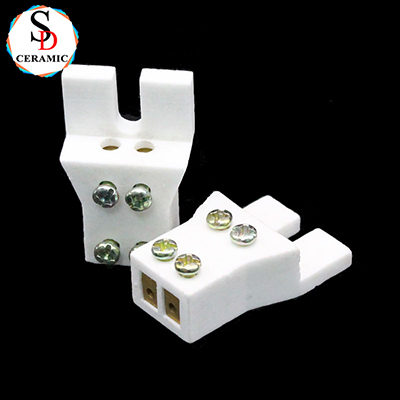

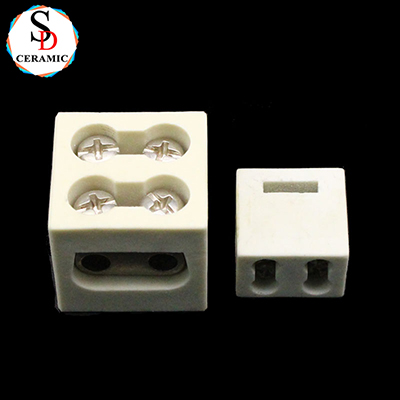

Ceramic terminal block is made of steatite, which has good insulation performance and is safe and stable. It is used in a variety of wiring terminal applications. Steatite is an inorganic material based on natural raw materials consisting predominantly of magnesium silicate. It is marked by a high heat resistance, resistance to leakage current and dielectric strength. It is recommended as an insulation material in electrical engineering.

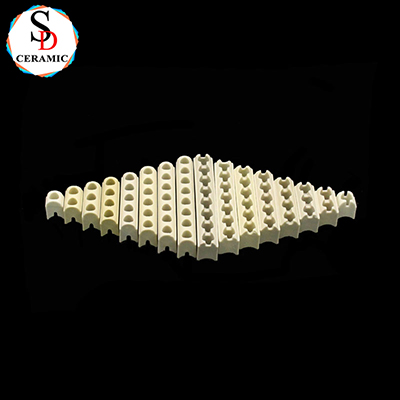

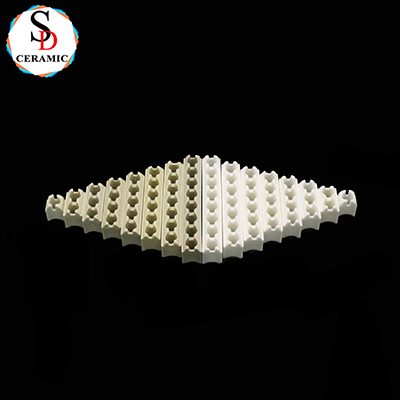

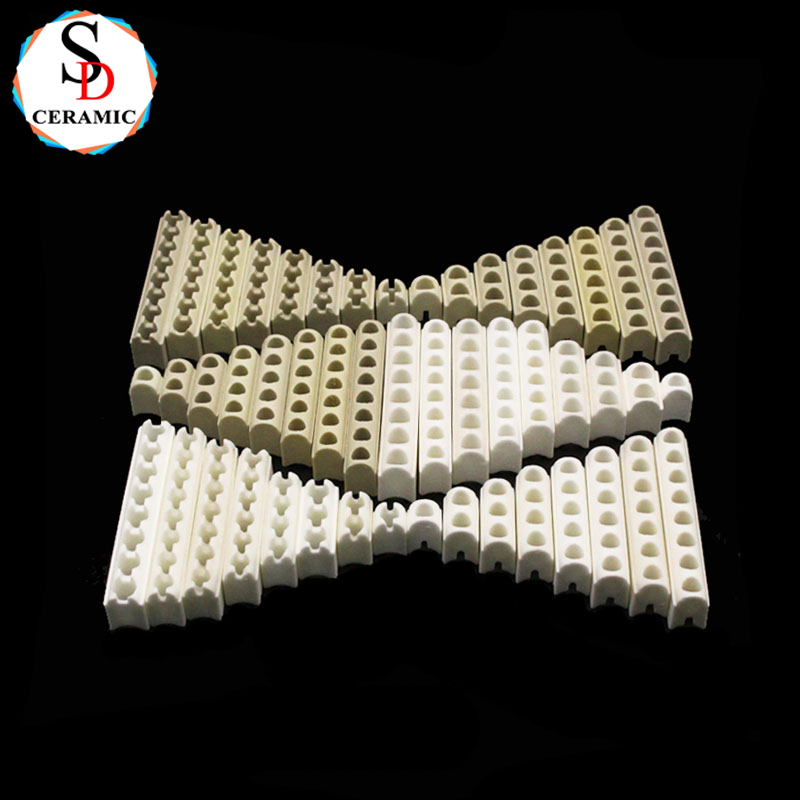

Ceramic Band Heater Insulators With Cooling Wings is the speacially Steatite Ceramic Insulator for Band Heater. It has more big area to touch with air. So that it can help heater to expand the heat more efficient and cool faster.

There are two dimensions:

1. CBH-01: Width 9mm, Diameter of hole 5mm, Length 7.5*X mm ( X=holes);

2. CBH-02: Width10mm, Diameter of hole 6mm, Length 8*X mm ( X=holes);.

They all can be made in mass production.

Other Specification:

Type: nomal-A type, slip in top-B type and slip in bottom -C type

Color: Beige Or White.

Features:

● Long lasting finish

● Exclusive designs

● Lustrous shine

● Excellent thermal condictivity

● Resistance against thermal shock

● Excellent thermal condictivity and heat transfer

Production process

1. Grind and crush the raw materials to be slurry or powder

2. se-different method to making the slurry or powder into semi-finished products

3. Put the semi-finished products into the kiln for dewaxing and sintering;

4. After forming and sintering, Ceramic Sleeves products can also be processed by subsequent CNC precision machining according to the drawing requirements. Then Q/C test.

5. Finally package Ceramic Sleeves by bubble paper or cartons and place it on tray for delivery

Certifications

Our customers

Packaging and shipping

Transport

FAQ：

Q: Do you have the products in stock?

A: Some standard produce have in stock, such as ceramic band heater insulator; bobbin heater insulator and ceramic connector. But it needs to check according to your requirement.

Q: How do you pack the goods?

A: Our standard packaging is carton, we can customize it as per your requirement as well.

Q: How many days do you finish the sample?

A: Usually 15 business days (Including 8days for making furnaces and 7days for producing samples)
