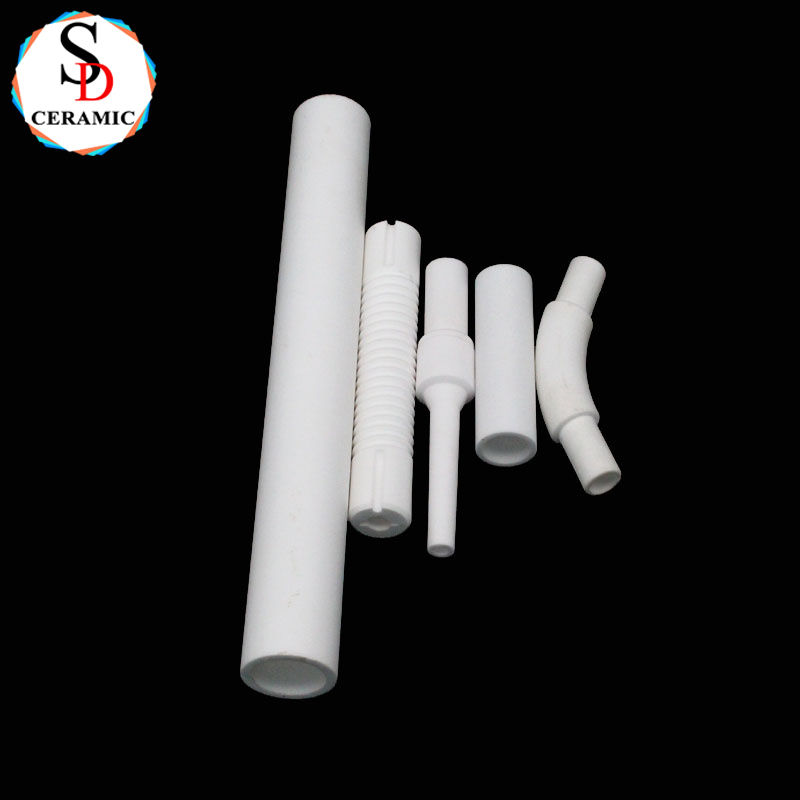

Durable C795 Alumina Tubing Threaded Ceramic Pipe

Durable C795 Alumina Tubing Threaded Ceramic Pipe is resistant to chemical corrosion ensures durability in harsh environments. Common applications include thermocouple protection, furnace linings, and insulators in various industrial settings.

Inquire Now

Product Introduction

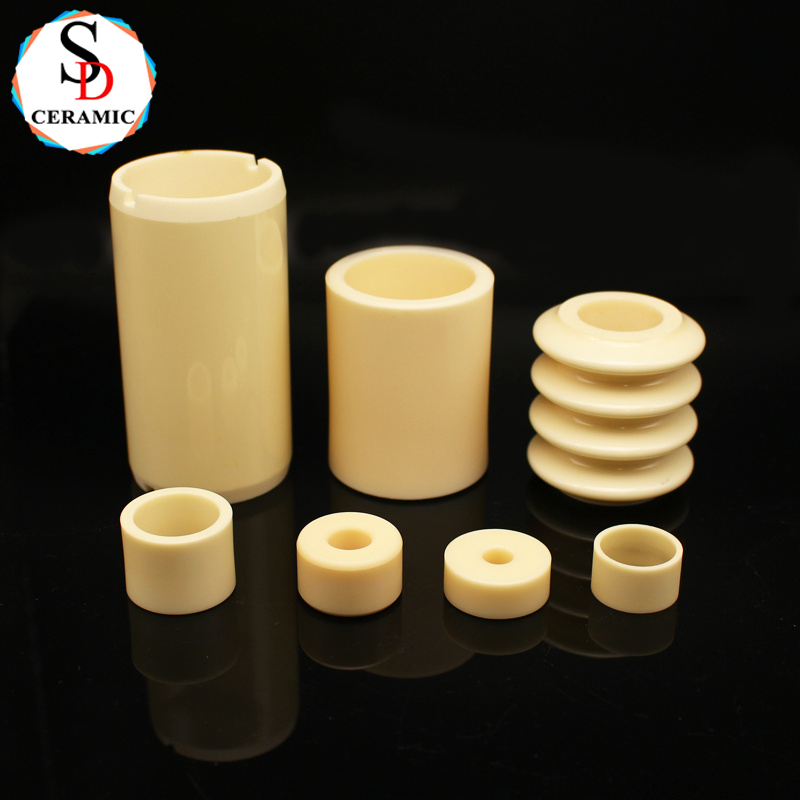

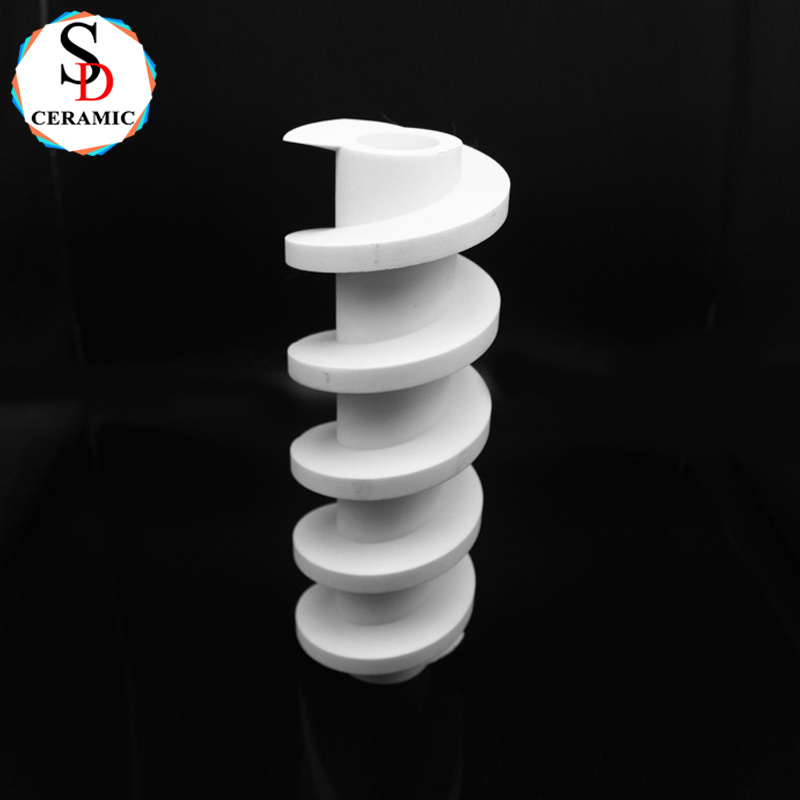

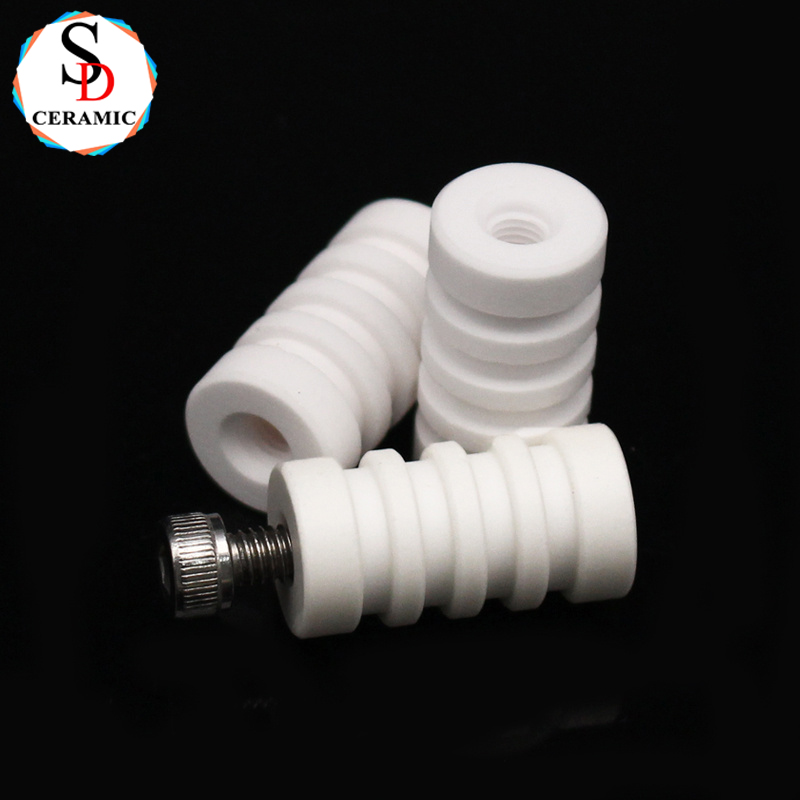

Durable C795 Alumina Tubing Threaded Ceramic Pipe

The 95% Alumina Ceramic Tube is a high-performance ceramic component made primarily from alumina (Al₂O₃), comprising 95% of its composition. Known for its excellent mechanical strength, high hardness, and superior wear resistance, this ceramic tube is ideal for demanding industrial applications. It also exhibits exceptional thermal stability, maintaining its properties at high temperatures, and offers good electrical insulation, making it suitable for electrical and electronic uses. Additionally, its resistance to chemical corrosion ensures durability in harsh environments. Common applications include thermocouple protection, furnace linings, and insulators in various industrial settings.

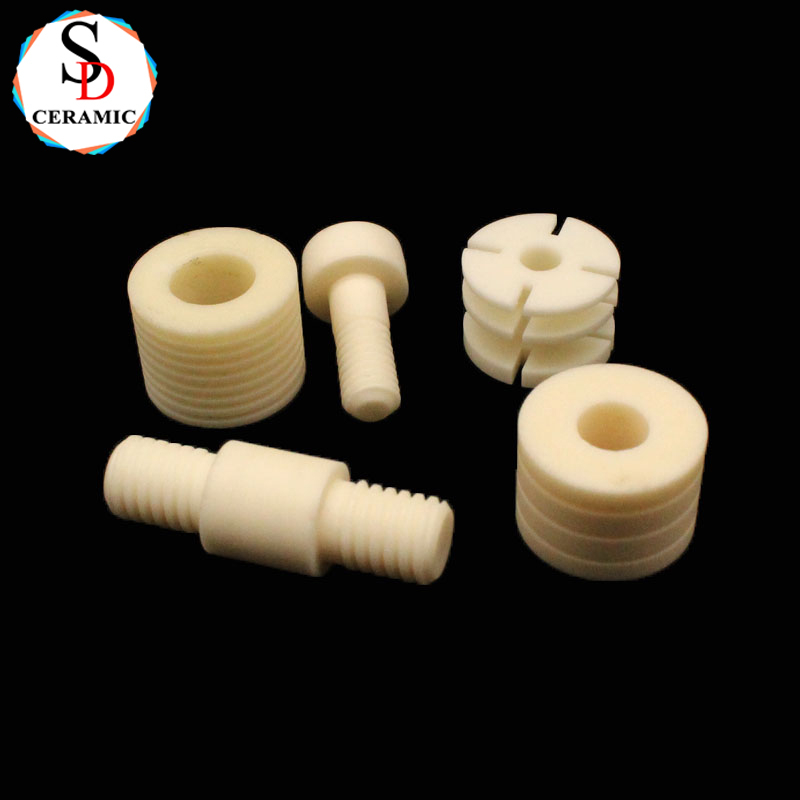

Durable C795 Alumina Tubing Threaded Ceramic Pipe

The benefits of alumina ceramic pipes include their longevity due to wear resistance, efficiency in reducing torque and cutting forces, versatility for various materials, safety as non-conductive materials, and cost-effectiveness due to their extended service life. These drills are an excellent choice for both professional and DIY applications, providing a reliable tool for high-quality drilling tasks.

Main Features:

1. High hardness

2. High heat resistance

3. Good wear resistance

4. High electrical resistivity

5. High corrosion resistance

Technical Parameters

Properties	Units	Cordierite Ceramic	Mullite Ceramic	95%Alumina Ceramic	99%Alumina Ceramic	99.5%Alumina Ceramic	99.7%Alumina Ceramic	Silicon Nitride	Zirconia Ceramic
Colour		Yellow	White	White	Light yellow	Light yellow	Light yellow	Black	White
Density	g/cm3	1.9	2.6	3.6	3.8	3.8	3.9	3.2	6
Flexural Strength	Mpa	30	120	300	350	375	375	800	1100
Compressive Strength	MPa	350	500	2500	2800	2800	2554	2600	3000
Modulus of Elasicity(20℃）	Gpa	40	100	300	350	350	357	290	320
Max Use Temperature	°C	1200	1300	1400	1500	1500	1760	1300	1050
Thermal Condutivity	W(m.K)	1.3-1.8	2~6	20	30	30	33-38	25	3
Thermal Expansion Cofficient	10-6/°C	2.5-3	2.5-3	7.5	8	8.2	8.2	3	10
Thermal Shock Resistance	△T℃	300	150	140	150	200	223	600	250
Dielectric Strength	KV/mm	-	-	15	18	18	23.4	14	15
Dielectric Constant	Er	8	8	9	9.2	9.2	9.84	9	26

Production process

1. Grind and crush the raw materials to be slurry or powder

2. se-different method to making the slurry or powder into semi-finished products

3. Put the semi-finished products into the kiln for dewaxing and sintering;

4. After forming and sintering, Ceramic Sleeves products can also be processed by subsequent CNC precision machining according to the drawing requirements. Then Q/C test.

5. Finally package Ceramic Sleeves by bubble paper or cartons and place it on tray for delivery

95 alumina substrate

Certifications

95 alumina substrate

Our customers

Packaging and shipping

95 alumina substrate

Transport

Alumina AL2O3 Substrate Insulating Ceramic Substrate Thermally Conductive Ceramic Sheet

FAQ：

Q: Do you have the products in stock?

A: Some standard produce have in stock, such as ceramic band heater insulator; bobbin heater insulator and ceramic connector. But it needs to check according to your requirement.

Q: How do you pack the goods?

A: Our standard packaging is carton, we can customize it as per your requirement as well.

Q: How many days do you finish the sample?

A: Usually 15 business days (Including 8days for making furnaces and 7days for producing samples)
