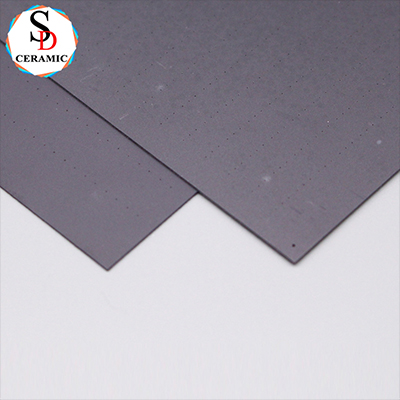

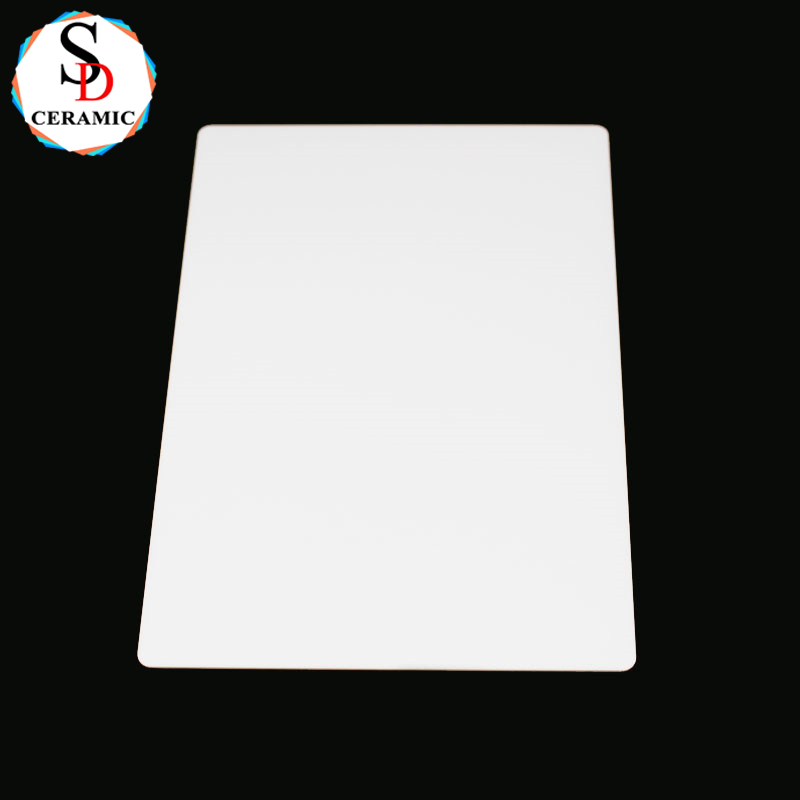

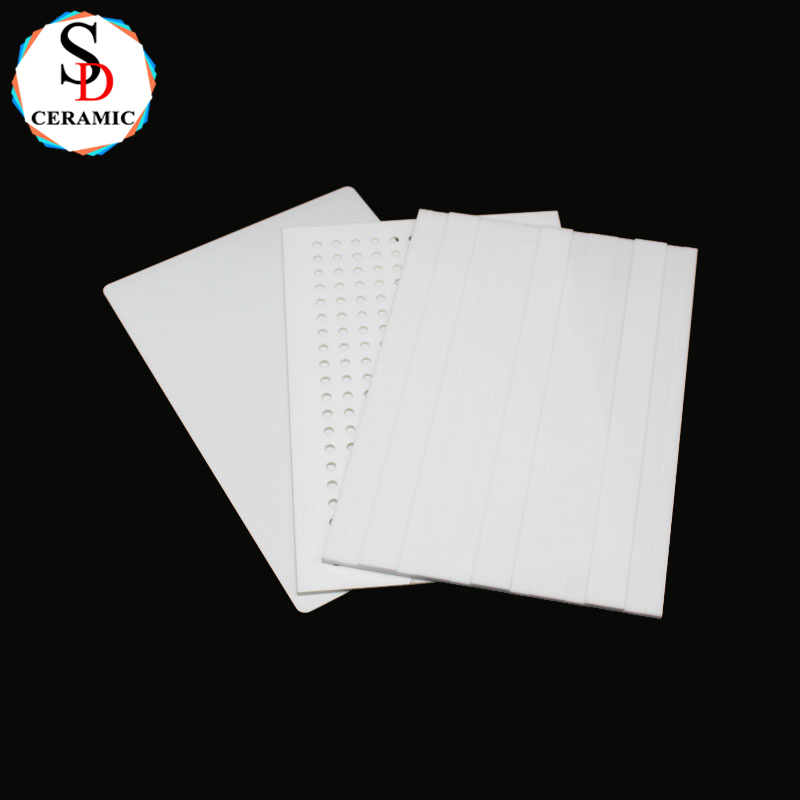

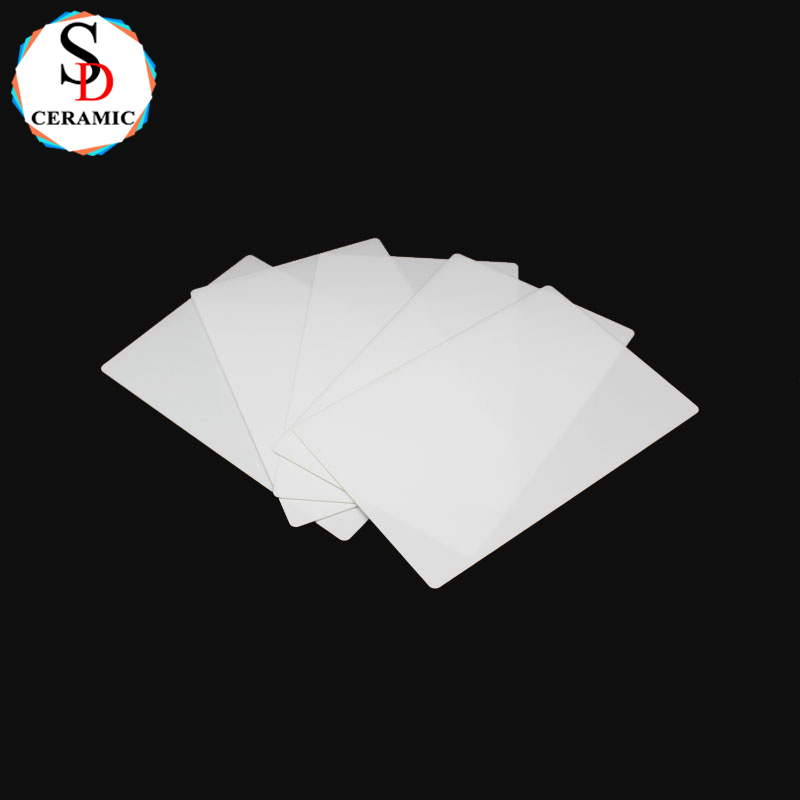

Customize Large Square 95 Al2O3 Black Alumina Sheet

Customize Large Square 95 Al2O3 Black Alumina Sheet

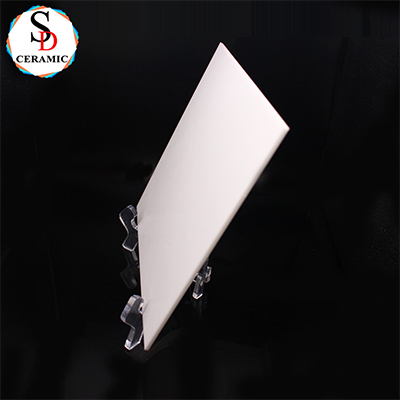

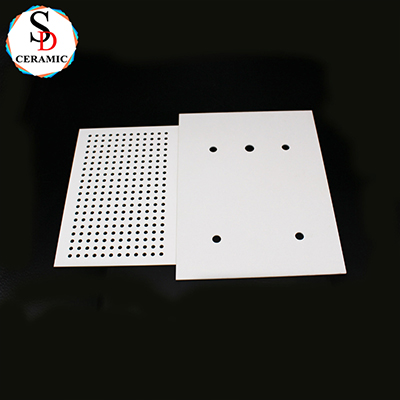

95 alumina ceramic sheet is a kind of high-performance industrial ceramic, its main component is 95% alumina (Al2O3), and the other 5% is supplemented by other metal oxides, so as to improve the comprehensive properties of the material. This material is famous for its high strength, high hardness and excellent wear resistance. At the same time, it has excellent heat resistance, low thermal expansion coefficient and good thermal conductivity, which is very suitable for use in high temperature and rapid temperature change environment. 95 alumina ceramic board also has good electrical insulation and chemical stability, which makes it widely used in electronic, electrical, chemical treatment and pharmaceutical industries. In addition, its high biocompatibility also makes it suitable for medical fields, such as artificial joints. The material can achieve high-precision size and shape through precision machining, meet various specific application requirements, and have a variety of standard specifications and customization options to choose from. With the continuous progress of production and processing technology, 95 alumina ceramic plate has become the first choice for many high-end industrial applications.

Main Features:

1. High hardness

2. High heat resistance

3. Good wear resistance

4. High electrical resistivity

5. High corrosion resistance

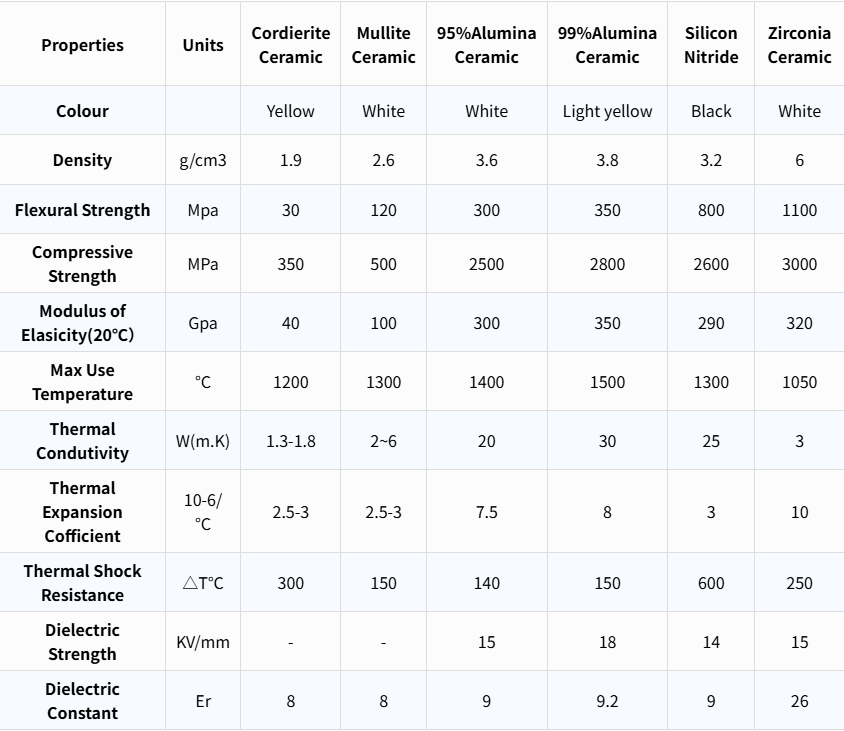

Technical Parameters

Production process

1. Grind and crush the raw materials to be slurry or powder

2. se-different method to making the slurry or powder into semi-finished products

3. Put the semi-finished products into the kiln for dewaxing and sintering;

4. After forming and sintering, Ceramic Sleeves products can also be processed by subsequent CNC precision machining according to the drawing requirements. Then Q/C test.

5. Finally package Ceramic Sleeves by bubble paper or cartons and place it on tray for delivery

Certifications

Our customers

Packaging and shipping

Transport

FAQ：

Q: Do you have the products in stock?

A: Some standard produce have in stock, such as ceramic band heater insulator; bobbin heater insulator and ceramic connector. But it needs to check according to your requirement.

Q: How do you pack the goods?

A: Our standard packaging is carton, we can customize it as per your requirement as well.

Q: How many days do you finish the sample?

A: Usually 15 business days (Including 8days for making furnaces and 7days for producing samples)
